Vitodens 200-W 5 x 49kW Wall Mounted In Series

RRP: £49,664.40

You Save £23,176.72

Price: £26,487.68 inc VAT

Availability: call for availability call for availability

Quantity:

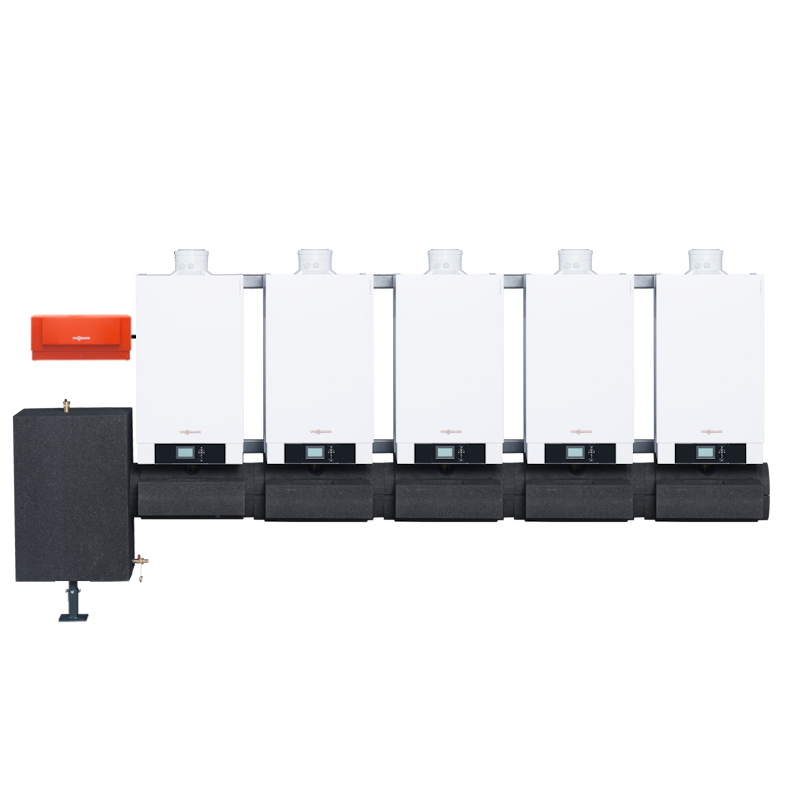

Vitodens 200-W 5x 49kW - Wall Mounted In Series.

A modular cascade system, suitable for apartment buildings, commercial applications and public facilities.

Standard seasonal efficiency [to DIN] up to 98 % (Hs)

Durable and effcient thanks to Inox-Radial heat exchanger

Modulating MatriX cylinder burner with a long service life thanks to stainless steel MatriX gauze.

Easy to use Vitotronic control unit with plain text and grahic display

Lambda Pro combustion controller saving on charges with three year inspection intervals

Lambda Pro Control combustion controller for all gas types

High level of efficiency with any gas mixture

Quiet operation thanks to low fan speed

Fully pre-assembled cascade modules for wall and freestanding installations.

Vitodens 200-W System as ordered

Cascade communication module for each boiler

Vitotronic 300-K Cascade control unit

Immersion temperature sensor

Free standing mounting frame or installation aid for wall mounting

Hydraulic cascade connection with high efficiency circulation pump and thermal insulation

Technical documentation

The units are delivered preset for natural gas. A conversion within the gas groups E/LL is not necessary.

The changeover to LPG is carried out via the control unit (therefore no conversion kit is required)

Individual flues or a flue gas header should be ordered as required.

When operating the boilers in a flue gas cascade, a backflow safety device must be ordered for each boiler where applicable (see accessories)
